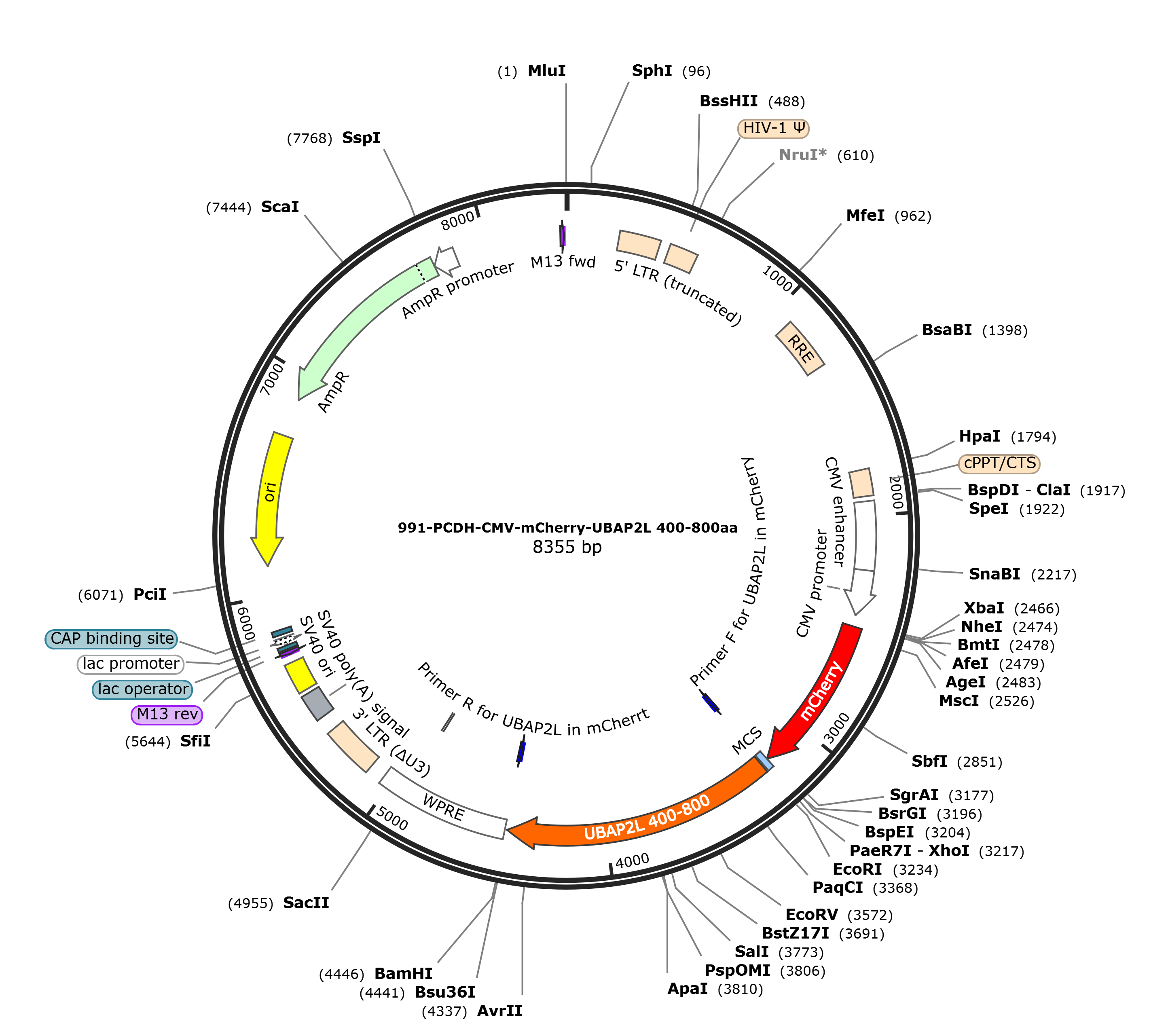

pCDH-CMV-mCherry-UBAP2L 400-800aa

LOCUS       pCDH-CMV-mCherry-UBAP2L 400-800aa              8355 bp DNA     circular SYN 10-DEC-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8355)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8355
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     misc_feature    3219..3239
                     /label=Primer F for UBAP2L in mCherry
     CDS             3240..4442
                     /codon_start=1
                     /label=UBAP2L 400-800
                     /translation="SLVQYDLKNPSDSAVHSPFTKRQAFTPSSTMMEVFLQEKSPAVAT
                     STAAPPPPSSPLPSKSTSAPQMSPGSSDNQSSSPQPAQQKLKQQKKKASLTSKIPALAV
                     EMPGSADISGLNLQFGALQFGSEPVLSDYESTPTTSASSSQAPSSLYTSTASESSSTIS
                     SNQSQESGYQSGPIQSTTYTSQNNAQGPLYEQRSTQTRRYPSSISSSPQKDLTQAKNGF
                     SSVQATQLQTTQSVEGATGSAVKSDSPSTSSIPPLNETVSAASLLTTTNQHSSSLGGLS
                     HSEEIPNTTTTQHSSTLSTQQNTLSSSTSSGRTSTSTLLHTSVESEANLHSSSSTFSTT
                     SSTVSAPPPVVSVSSSLNSGSSLGLSLGSNSTVTASTRSSVATTSGKAPPNLPPGVPPL
                     LP"
     misc_feature    complement(4443..4463)
                     /label=Primer R for UBAP2L in mCherrt
     misc_feature    4452..5039
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(4923..4934)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5112..5345
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5417..5538
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5557..5692
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5730..5746)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5754..5770
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5778..5808)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5823..5844
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6132..6720)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6891..7751)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7752..7856)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     8330..8346
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattct
     3241 cactggtgca gtatgatttg aagaacccaa gtgattcagc agtgcacagc ccctttacaa
     3301 agcgccaggc ttttacccca tcttcaacca tgatggaggt gttccttcag gagaagtcac
     3361 ctgcagtggc tacctccaca gctgcacctc cacctccgtc ttctcctctg ccaagcaaat
     3421 ccacatcggc tccacagatg tcgcctggat cttcagacaa ccagtcctct agccctcagc
     3481 cggctcagca gaaactgaaa cagcagaaga aaaaagcctc cttgacttct aagattcctg
     3541 ctctggctgt ggagatgcct ggctcagcag atatctcagg gctaaacctg cagtttgggg
     3601 cattgcagtt tgggtcagag cctgtccttt ctgattatga gtccaccccc accacgagcg
     3661 cctcttcaag ccaggctcca agtagcctgt ataccagcac ggccagtgaa tcatcctcta
     3721 caatttcatc taaccagagt caggagtctg gttatcagag cggcccaatt cagtcgacaa
     3781 cctatacctc ccaaaataat gctcagggcc ctctttatga acagagatcc acacagactc
     3841 ggcggtaccc cagctccatc tcttcatcac cccaaaagga cctgactcag gcaaagaatg
     3901 gcttcagttc tgtgcaggcc acgcagttac agaccacaca atctgttgaa ggtgctacag
     3961 gctctgcagt gaaatctgat tcaccttcca cttctagcat cccccctctc aatgaaacgg
     4021 tatctgcagc ttccttactg acgacaacca atcagcattc atcctccttg ggtggcttga
     4081 gccacagtga ggagattcca aatactacca ccacacaaca cagcagcacg ttatctacgc
     4141 agcagaatac cctttcatca tcaacatctt ctgggcgcac ttcgacatcc actcttttgc
     4201 acacaagtgt ggagagtgag gcgaatctcc attcttcctc cagcactttt tccaccacat
     4261 ccagcacagt ctctgcacct cccccagtgg tcagtgtctc ctccagtctc aatagtggca
     4321 gtagcctggg cctcagccta ggcagcaact ccactgtcac agcctcgact cgaagctcag
     4381 ttgctacgac ttcaggaaaa gctcctccca acctccctcc tggggtcccg ccgttgttgc
     4441 cttagggatc caatcaacct ctggattaca aaatttgtga aagattgact ggtattctta
     4501 actatgttgc tccttttacg ctatgtggat acgctgcttt aatgcctttg tatcatgcta
     4561 ttgcttcccg tatggctttc attttctcct ccttgtataa atcctggttg ctgtctcttt
     4621 atgaggagtt gtggcccgtt gtcaggcaac gtggcgtggt gtgcactgtg tttgctgacg
     4681 caacccccac tggttggggc attgccacca cctgtcagct cctttccggg actttcgctt
     4741 tccccctccc tattgccacg gcggaactca tcgccgcctg ccttgcccgc tgctggacag
     4801 gggctcggct gttgggcact gacaattccg tggtgttgtc ggggaagctg acgtcctttc
     4861 catggctgct cgcctgtgtt gccacctgga ttctgcgcgg gacgtccttc tgctacgtcc
     4921 cttcggccct caatccagcg gaccttcctt cccgcggcct gctgccggct ctgcggcctc
     4981 ttccgcgtct ccgccttcgc cctcagacga gtcggatctc cctttggccg cctccccgcc
     5041 ggtaccttta agaccaatga cttacaaggc agctgtagat cttagccact ttttaaaaga
     5101 aaagggggga ctggaagggc taattcactc ccaacgaaaa taagatctgc tttttgcttg
     5161 tactgggtct ctctggttag accagatctg agcctgggag ctctctggct aactagggaa
     5221 cccactgctt aagcctcaat aaagcttgcc ttgagtgctt caagtagtgt gtgcccgtct
     5281 gttgtgtgac tctggtaact agagatccct cagacccttt tagtcagtgt ggaaaatctc
     5341 tagcagtagt agttcatgtc atcttattat tcagtattta taacttgcaa agaaatgaat
     5401 atcagagagt gagaggaact tgtttattgc agcttataat ggttacaaat aaagcaatag
     5461 catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg gtttgtccaa
     5521 actcatcaat gtatcttatc atgtctggct ctagctatcc cgcccctaac tccgcccagt
     5581 tccgcccatt ctccgcccca tggctgacta atttttttta tttatgcaga ggccgaggcc
     5641 gcctcggcct ctgagctatt ccagaagtag tgaggaggct tttttggagg cctagacttt
     5701 tgcagagacg gcccaaattc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat
     5761 ccgctcacaa ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc
     5821 taatgagtga gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga
     5881 aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt
     5941 attgggcgct cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg
     6001 cgagcggtat cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac
     6061 gcaggaaaga acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg
     6121 ttgctggcgt ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca
     6181 agtcagaggt ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc
     6241 tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc
     6301 ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag
     6361 gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc
     6421 ttatccggta actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca
     6481 gcagccactg gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg
     6541 aagtggtggc ctaactacgg ctacactaga aggacagtat ttggtatctg cgctctgctg
     6601 aagccagtta ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct
     6661 ggtagcggtg gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa
     6721 gaagatcctt tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa
     6781 gggattttgg tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa
     6841 tgaagtttta aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc
     6901 ttaatcagtg aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga
     6961 ctccccgtcg tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca
     7021 atgataccgc gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc
     7081 ggaagggccg agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat
     7141 tgttgccggg aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc
     7201 attgctacag gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt
     7261 tcccaacgat caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc
     7321 ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg
     7381 gcagcactgc ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt
     7441 gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg
     7501 gcgtcaatac gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga
     7561 aaacgttctt cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg
     7621 taacccactc gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg
     7681 tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt
     7741 tgaatactca tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc
     7801 atgagcggat acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca
     7861 tttccccgaa aagtgccacc tgacgtctaa gaaaccatta ttatcatgac attaacctat
     7921 aaaaataggc gtatcacgag gccctttcgt ctcgcgcgtt tcggtgatga cggtgaaaac
     7981 ctctgacaca tgcagctccc ggagacggtc acagcttgtc tgtaagcgga tgccgggagc
     8041 agacaagccc gtcagggcgc gtcagcgggt gttggcgggt gtcggggctg gcttaactat
     8101 gcggcatcag agcagattgt actgagagtg caccatatgc ggtgtgaaat accgcacaga
     8161 tgcgtaagga gaaaataccg catcaggcgc cattcgccat tcaggctgcg caactgttgg
     8221 gaagggcgat cggtgcgggc ctcttcgcta ttacgccagc tggcgaaagg gggatgtgct
     8281 gcaaggcgat taagttgggt aacgccaggg ttttcccagt cacgacgttg taaaacgacg
     8341 gccagtgcca agctg
//
